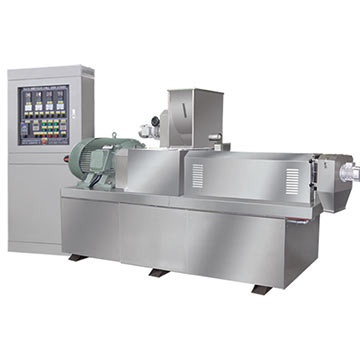

Twin Screw Extruder
Product advantages
The material is fully matured under high temperature and pressure, through the outlet mold expansion, form foods of various shapes.
Detailed introduction
Function:
The material is fully matured under high temperature and pressure, through the outlet mold expansion, form foods of various shapes.
The feeding system, driving system and rotary cutting system of the extruder all adopt frequency conversion speed regulation. Strong power and smooth operation; Automatic lubrication and forced cooling to ensure the safe operation of the extruder; Select single and double screw feeding system for different materials. Even feeding, stable and reliable; The screw is processed by special process, wear-resistant and has long service life; Different screw length and diameter ratio and structure meet different technological requirements.
Feature:
1. Speed control technology of frequency converter is adopted to make the equipment run more smoothly and save electricity.
2. Screw and machine tube are heat treated with alloy steel, high hardness and long life,using a modular structure, can be combined arbitrarily.
3. Forced lubrication system to ensure the transmission part of the equipment has a longer life;
4. Automatic temperature control system to make the temperature control more intuitive, more accurate parameters;
5. Screw has self - cleaning function, no need to remove screw cleaning when stop.
Model and main technical parameters:
It has excellent engineering and technical personnel and high-quality installation technicians
Rich experience in R & D and manufacturing of food machinery
it has won extensive support and high praise from customers
24-hour service hotline +86-400-6137009 consultation hotline: +86-13165103321
Strive to improve the technical content of products
Products all over the world
The material is fully matured under high temperature and pressure, through the outlet mold expansion, form foods of various shapes.
The feeding system, driving system and rotary cutting system of the extruder all adopt frequency conversion speed regulation. Strong power and smooth operation; Automatic lubrication and forced cooling to ensure the safe operation of the extruder; Select single and double screw feeding system for different materials. Even feeding, stable and reliable; The screw is processed by special process, wear-resistant and has long service life; Different screw length and diameter ratio and structure meet different technological requirements.
Feature:
1. Speed control technology of frequency converter is adopted to make the equipment run more smoothly and save electricity.
2. Screw and machine tube are heat treated with alloy steel, high hardness and long life,using a modular structure, can be combined arbitrarily.
3. Forced lubrication system to ensure the transmission part of the equipment has a longer life;
4. Automatic temperature control system to make the temperature control more intuitive, more accurate parameters;
5. Screw has self - cleaning function, no need to remove screw cleaning when stop.
Model and main technical parameters:
| Model | capacity | Installed capacity | actual consumption | Speed control mode | Dimension |
| SLG30-IV | 5-25kg/h | 15kw | 10kw | Inverter | 1.9*0.7*1.45 |
| SLG65-III | 160kg/h | 37kw | 38kw | Inverter | 2.0*0.9*1.9 |
| SLG65-IV | 240kg/h | 57kw | 40kw | Inverter | 2.5*0.9*1.9 |
| SLG70-II | 260kg/h | 57kw | 40kw | Inverter | 2.7*0.9*1.9 |
| SLG80-II | 400kg/h | 98kw | 75kw | Inverter | 3.8*1.0*2.5 |
| SLG77-II | 400kg/h | 98kw | 75kw | Inverter | 4.0*1.0*2.5 |
| SLG77-III | 400kg/h | 98kw | 75kw | Inverter | 5.5*1.0*3.9 |
| SLG85-II | 500kg/h | 98kw | 75kw | Inverter | 4.2*1.0*2.5 |
| SLG85-III | 600kg/h | 132kw | 85kw | Inverter | 4.5*1.0*2.5 |
| SLG95-III | 900kg/h | 205kw | 150kw | Inverter | 6.2*1.1*4.0 |
